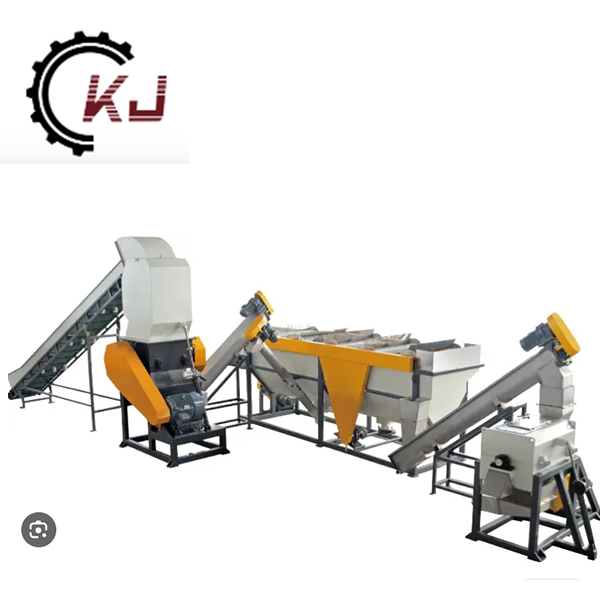

Unpacking the Main Components and Features of an HDPE PP PE Bag Film Crushing Washing Machine

Plastic recycling is an essential industry for reducing waste and promoting sustainability. Among the various machines used in this industry, the HDPE PP PE Bag Film Crushing Washing Machine plays a crucial role in processing plastic films. This machine is specifically designed to handle high-density polyethylene (HDPE), polypropylene (PP), and polyethylene (PE) films, converting them into clean, recyclable materials. In this blog, we will explore the main components and features of this vital machine, highlighting how each part contributes to its overall functionality and efficiency.

1. Feeding Conveyor

The feeding conveyor is the first component in the HDPE PP PE Bag Film Crushing Washing Machine. It is responsible for transporting plastic films into the machine for processing. The conveyor ensures a steady and controlled flow of material, preventing jams and allowing for continuous operation. This component often includes a metal detector to identify and remove any metal contaminants, protecting the downstream machinery from damage.

2. Crusher/Shredder

At the heart of the machine is the crusher or shredder, which breaks down large plastic films into smaller, manageable pieces. The crusher uses rotating blades or hammers to shred the plastic into flakes, making it easier to wash and process further. This component is designed to handle various film thicknesses and densities, ensuring efficient size reduction regardless of the input material.

3. Friction Washer

The friction washer is a critical feature that enhances the cleaning process. After the plastic films are shredded, they pass through the friction washer, where high-speed rotating paddles scrub the plastic flakes. This action removes dirt, labels, adhesives, and other contaminants from the surface of the plastic, ensuring that the material is thoroughly cleaned. The friction washer typically operates with water, which helps to loosen and wash away impurities.

4. Floating Washer

Following the friction washer, the plastic flakes enter the floating washer. This component uses water to separate materials based on their density. Since HDPE, PP, and PE films float in water, contaminants like dirt, sand, and other heavy particles sink to the bottom and are removed. The floating washer ensures that only the clean, lightweight plastic flakes move forward in the process, enhancing the purity of the final product.

5. Centrifugal Dryer

After washing, the plastic flakes need to be dried to prepare them for recycling. The centrifugal dryer uses high-speed spinning to remove excess water from the plastic flakes. As the material spins, water is expelled through centrifugal force, leaving the plastic dry and ready for the next stage of processing. This component is essential for reducing moisture content, which can affect the quality of recycled plastic.

6. Cyclone Separator

The cyclone separator works in conjunction with the centrifugal dryer to further remove moisture and fine particles from the plastic flakes. Using a combination of air and centrifugal force, the cyclone separator effectively separates remaining water droplets and dust, ensuring that the plastic is clean and dry. This step is crucial for achieving high-quality recycled material that can be used in manufacturing new plastic products.

7. Control Panel

The control panel is the brain of the HDPE PP PE Bag Film Crushing Washing Machine. It allows operators to monitor and adjust various parameters of the machine, such as speed, temperature, and water flow. The control panel is equipped with user-friendly interfaces and safety features to ensure smooth and safe operation. Advanced models may include automation and programmable settings to optimize the recycling process further.

8. Water Treatment System

Recycling plastic films requires significant amounts of water, and managing this resource efficiently is crucial. The water treatment system recycles and cleans the water used in the washing process, reducing overall water consumption and minimizing environmental impact. This system filters and purifies the water, removing contaminants and allowing it to be reused in the washing stages. Effective water treatment is essential for sustainable and eco-friendly plastic recycling operations.

Conclusion

The HDPE PP PE Bag Film Crushing Washing Machine is a sophisticated piece of equipment designed to handle the challenges of plastic film recycling. Its main components—feeding conveyor, crusher/shredder, friction washer, floating washer, centrifugal dryer, cyclone separator, control panel, and water treatment system—work together to ensure efficient and effective processing of HDPE, PP, and PE films. By understanding the functions and features of each component, we can appreciate the complexity and importance of this machine in promoting sustainability and reducing plastic waste.
